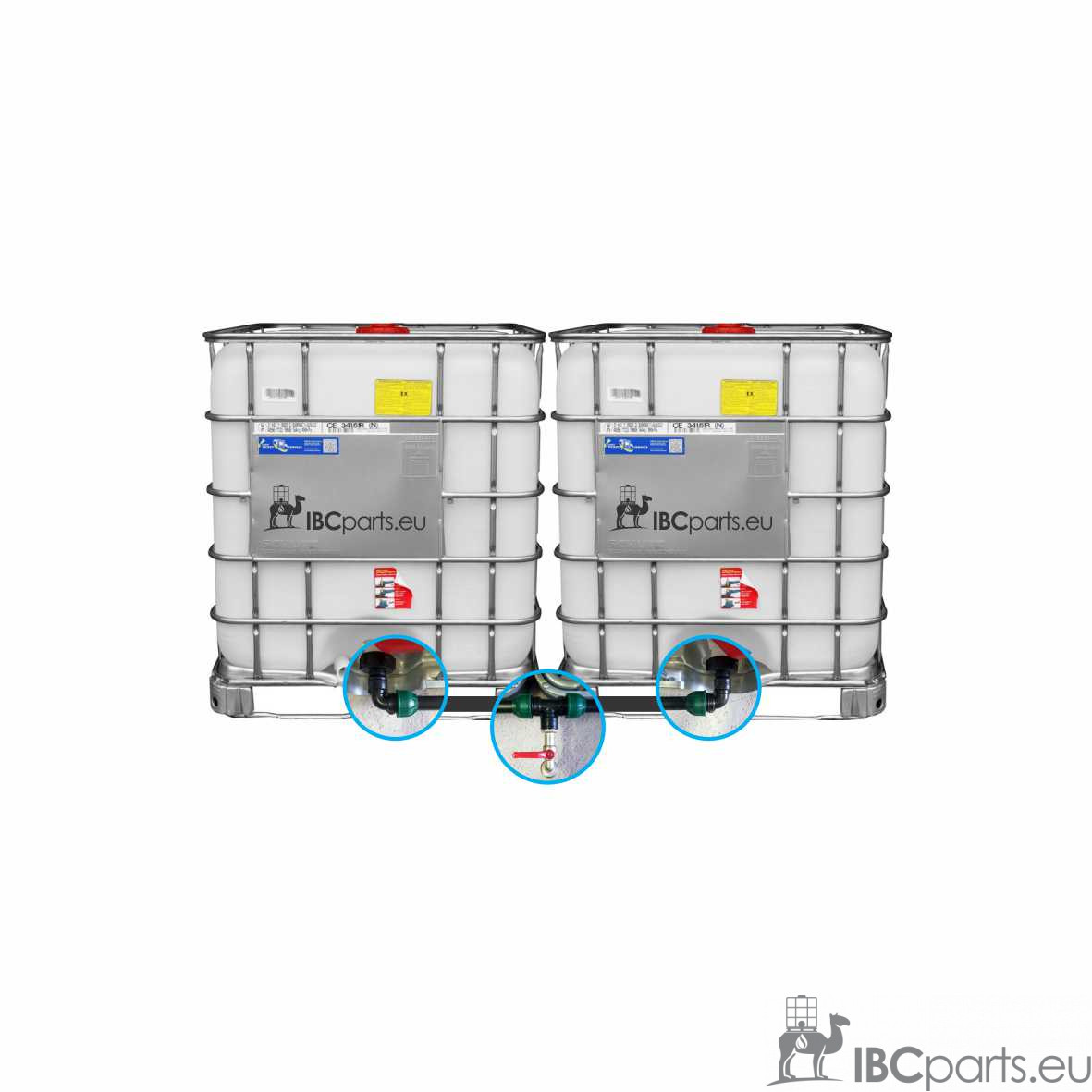

DUO KLASIK system

Product information:
The system for connecting two IBC tanks is now even more powerful and even cheaper!

The package includes:
2x ECO reducer+ for tanks with valve fi 55-62mm, coarse thread S60x6 (DN50), T-piece F, 2x elbow F, 2x alkaten hose* 47-48cm, tap, reducer

*Alkaten tubes are slightly curved because they are stored on reels. We use LESS alkatene hoses, which are more flexible and much easier to use - you straighten them when installing and they stay in that position.

The connectors are green, as shown in the picture.

The gap between the tanks after installation of the DUO system is between 2 and 6 cm.
Foam gasket (PE). Excellent sealing and high durability!

The system is available in 1″ (32mm) unless otherwise marked.

Options:
DUOBREZ: No taps, just a connection between the two tanks.
DUO1Metal 3/4″ BR tap* with hose connector.
DUO2Metal ALU 3/4" tap* with hose nozzle.
DUO3Metal double 1/2″ PRO tap* with hose connector and "click" spout.
DUO4Metal double 3/4″ PRO tap* with hose connector and "click" spout.
DUO5Metal 1″ tap* with hose spigot.
DUO6Metal 1″ PRO tap* with hose nozzle.
DUO7aPlastic 3/4″ MF valve* with brass hose nozzle.
DUO7bMetal 3/4″ PRO valve* with brass hose nozzle.
DUO8aPlastic 1″ MF valve* with brass hose nozzle.
DUO8bMetal 1″ PRO valve* with brass hose nozzle.
DUO9: Brass Y-adapter with two click connectors for garden hose.
DUOMAX1:  Metal 3/4″ tap and valve with brass connection for garden hose. Excellent, very useful system.
DUOHT: System for use with hose 50mm (outer diameter). You can use either an alkaline hose or a rigid PVC hose. The hose in this system is NOT included in the offer. Metal 1″ tap with hose spigot.
DUOHTBREZ: System for use with hose 50mm (outer diameter). You can use either an alkaline hose or a rigid PVC hose. The hose in this system is NOT included in the offer.

We can also design a system to your specifications. Multiple outlets, a valve to connect a hydrophore, multiple taps, etc... The hydrophore connection is most practical on the right side - because of the direction of opening of the valve handle.

Reference:
If you are going to discharge water into one tank, the other tank must be vented to allow the water to flow smoothly through the valves.

There are several ways to do this:
1. If you don't mind water leaking through the lid opening when the tank is filled to the top, you can just unscrew the tank lid slightly - just enough to let air pass through. When the tanks are completely full, the excess water (overflow) will flow out from here.
2. A vented lid works in a similar way - air passes through, but so does water when the tanks are filled to the top.
3. The vented lid has a 2″ thread in the centre. A coupling can be screwed into this opening so that the hose can be inserted into it, which then faces vertically - above the water surface. This is how the tank "breathes". The coupling can be for 25mm, 32mm and 50mm pipe diameters.
4. Use a cover with an outlet and fix a suitable spout (for an alkaline hose, garden hose, etc.) to it and drain the excess water (overflow) away.
5. You can use a simple vent (use a lid with an outlet or drill a hole in the tank. Connect the garden hose to this outlet. Fix the other end of the hose above the height where the water flows into the cistern (e.g. where you have a spigot from the gutter). This way, even when the cisterns are full, the water will not leak out and the cistern will "breathe".

Please contact us for further questions and advice.

Please read the warnings/advice below before installation.
Warning:
Tanks look the same at first glance, but they differ from each other. The biggest difference is in the valves. The standard and most common outside diameter of the valve is 60mm. In practice, it can vary and is between 55 in 62mm.
All S60 reducers in our range are designed to fit all coarse threads on 60mm diameter valves (S60x6). Due to slight differences in the "standard" valve threads, the feel of the reducer may vary when installed. It may fit perfectly, it may go a little loose or a little tighter. When it is screwed all the way in, it is tight and fixed. All reducers are of proven quality.

Tip:
Before installation, make sure that the cheek of the tank valve (where the reducer is to be installed) is smooth and undamaged. New tanks have an aluminium seal on the valve opening - if this is loosely removed, it can cause the reducer to leak less tightly. Any imperfections on the valve should be removed or sanded with sandpaper before the first installation of the pressure reducer.

Reducers ECO+used in DUO KLASIK systems are extremely durable and have a foam seal. Optionally, a rubber gasket can be purchased.

For the DUO KLASIK system, reducers can also be used
PRO or EXTRA - These are designed for the most demanding users and really extreme conditions.
